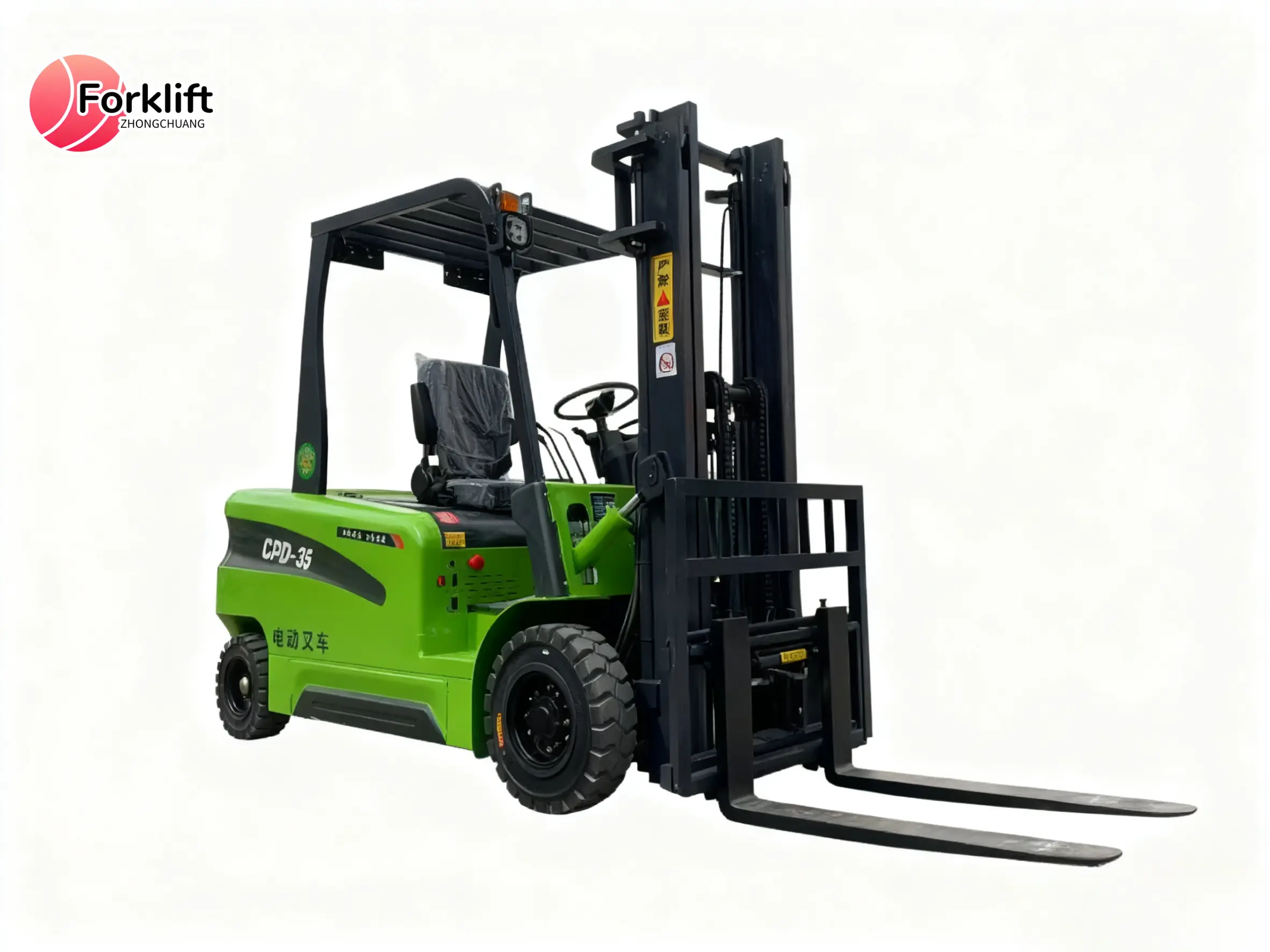

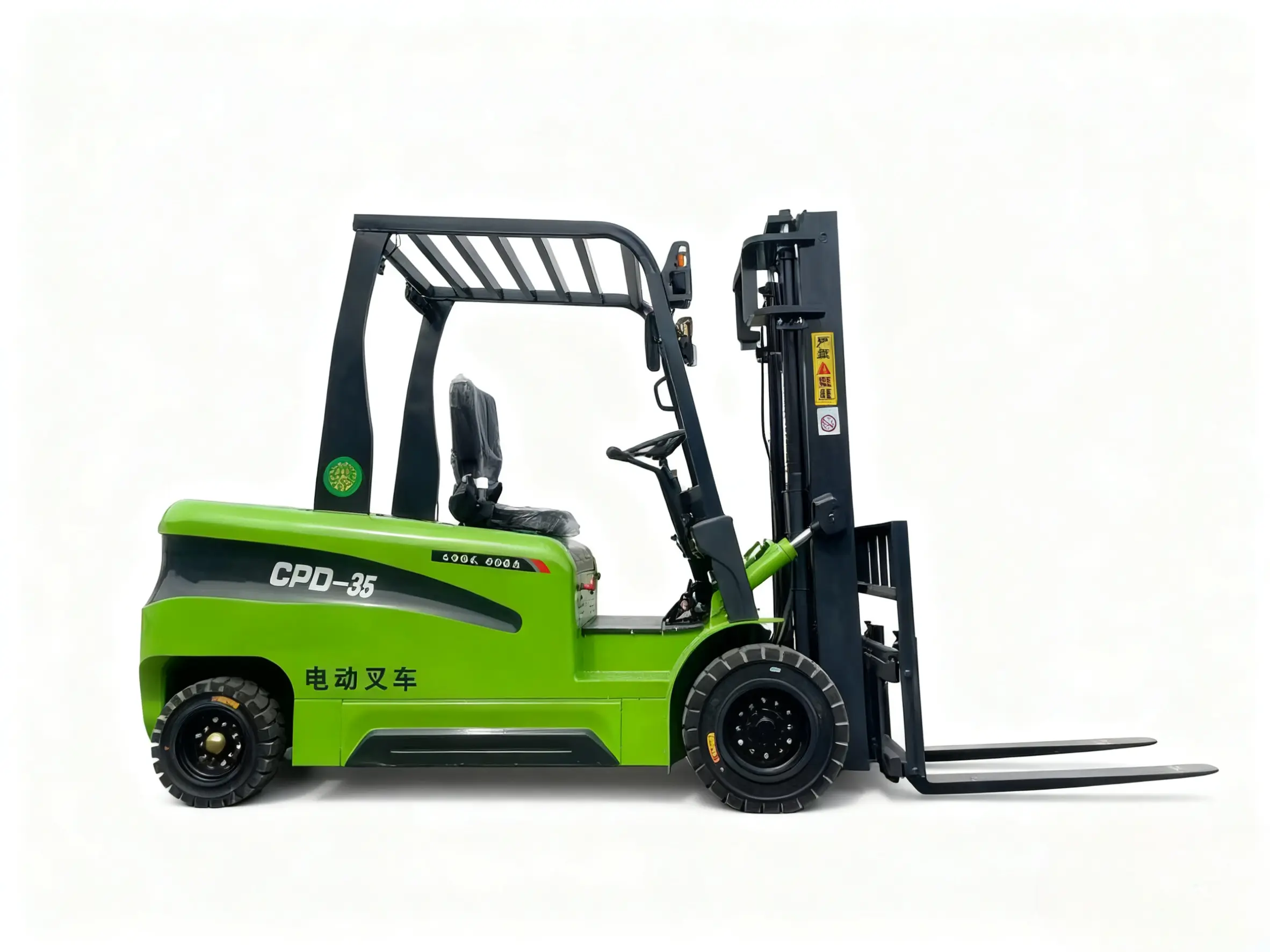

| Vehicle Parameters |
|
| Technical Parameters |
Maximum lifting capacity |
3500kg |
| long |
2500mm without forks |
| wide |
1200mm |
| high |
2100mm |
| Overall vehicle weight |
4500kg |
| Lifting height |
3 m (customizable) |
| Body material |
Thickened one-piece stamped body |
| Electrical system |
Walking motor |
10KW all-AC motor |
| Voltage |
60V |
| Controller |
Anti-landslide high-power controller |
| Battery |
① Super Power Maintenance-free dry battery
② Avic lithium Battery
(Optional based on the working hours of the vehicle) |
| Lights and signals |
Lights, left and right turn signals, brake lights,
Driving lights, instrument panels, horn lights, etc |
| Chassis system |
Drive axle |
All-floating integrated heavy-duty low-speed drive axle |
| Tyres |
Front 650-10 (high wear solid tire) Rear 18×7-8 (high wear solid tire) |
| Steering axle |
Rear axle for heavy-duty forklifts |
| Braking methods |
Handbrake, oil brake |
| Other configurations |
Lift cylinder |
Strengthen the seal double cylinder |
| Fork length |
Forged forks (1.07 m, 1.22 m, 1.37 m, 1.52 m) are optional |
| Hydraulic lift motor |
10KW all-AC motor |
| Gantry frame material |
Thickened 1480 type steel mast for forklifts |
| Steering method |
Hydraulic power steering |
| Turning radius |
90° can turn in place |
| Charging time |
5 hours |
| Continuous working hours |
6 to 8 hours |
| Climb Angle |
25 ° |
| Door frame hanging board |
Thickened shelf guardrails |
| Accessories with the vehicle |
Sunshade roof/Fast smart charger |
